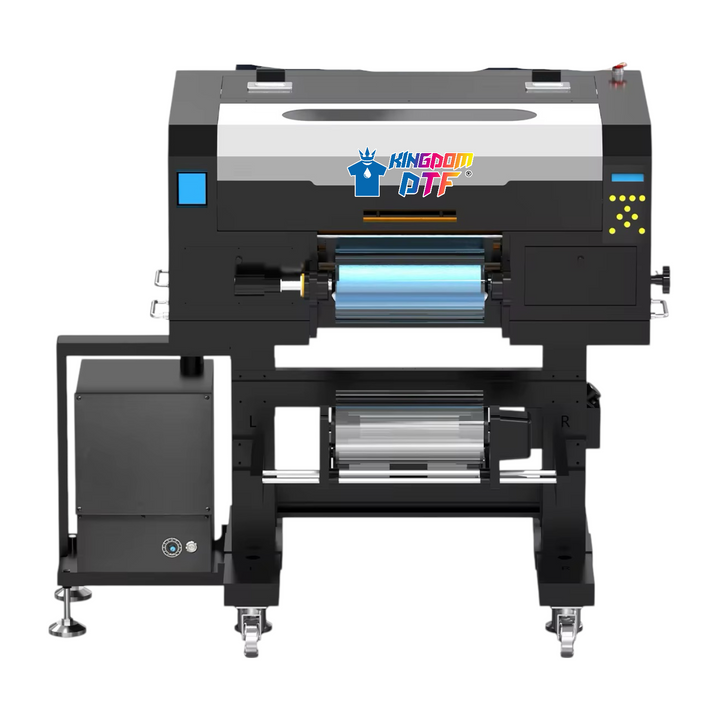

Armor A3 PRO™ UV DTF Printer 13” Dual Head i1600-U1 - UV Direct To Film

The Armor A3 PRO™ UV DTF Printer 12” Inch offers dual head i1600-U1 printheads, space-saving design, a combination of printing and laminating in one step, 12" roll capacity (A3 size) for A film + B film, and is one of the most cost-effective options of its kind with advanced technologies. Its dual head system provide one printhead for WWYK and another for CMVV to generate vivid, long-lasting uv dtf and sticker prints, white ink circulation system for consistent prints, ink level alerts, and more.

Armor A3 PRO™ enables users to produce vivid and resilient uv dtf and sticker prints for various materials, such as acrylic, ceramic, metal, wood, hard plastic, leather, and more, using our UV DTF Transfer Films, UV DTF Inks and Varnish. Compared to cut vinyl, UV DTF Printing is a popular printing technology on the market that can bring your business to the next level.

BENEFITS:

● Perfect for anyone, small to medium size businesses.
● Combination of printing and laminating in one step.
● Nice and compact design to save space with solid and strong-designed interiors and exterior shells.

FEATURES:

● Build with Dual Head i1600-U1 for accuracy, one for WWYK and one for CMVV.
● Advanced technology that can print faster than any desktop system. 50+ prints per hour with 3 logos in a row size 3.4" x 2". Multiple layer of white require more time for a rise effect.
● Large print area that can print 12" inches Rolls A Film + B Film.
● Uses Hoson boards for better performance.
● White Ink Circulation System is fully automatic to eliminate white ink separation, precipitation and clogging.
● Low Ink level alerts and Full Waste tank alert.
● Anti-coalition printhead sensors in both side to prevent any object from hitting the printheads.
● Heat element to heat the platen to help inks get dry better.
● Suction fan for the platen to help film stay flat.
● Easy Roll Feeders on the back of the printer for easy feeding and peeling the A Film layer protection.
● LED light to aid visibility in low light environments.
● 3 UV light to help cure the inks fast.
● Control Panel in front of the printer for easy access.
● Continuous Ink System with 500ml ink capacity for each color.
● Fume Extractor

SPECIFICATIONS:

● Printhead: Dual Epson i1600-U1 Printheads
● Power: 220v / 10A / 2200 watts
● Ink Type: UV DTF
● Ink Technology: Bulk
● Mainboard: Honson
● Interface: TCP / IP (Ethernet Network)
● Max. Print Width: 12” inches (30cm)
● Printing Resolution (720x1200)
● Output: Based on design size of 3 logos in a row size 3.4" x 2", 3 minutes
● Software Compatible: Riin Rip software (Compatible with Windows 10 & 11 PC)
● Printer
   ●● Weight 252 LB
   ●● Dimensions (LxWxH): 43" x 41" x 26"

● Packaging
   ●● Crate Weight 280 LB
   ●● Crate Dimensions (LxWxH): 47" x 44" x 41"

INCLUDED WITH YOUR PURCHASE:

● 1 Armor A3 PRO™ UV DTF Printer Dual Head with i1600-U1 - UV Direct To Film Printer
● 4 Roll Feeders attachment (1 for A film, 1 for B film, 1 for protection layer, 1 front roller)
● 1 Power Cord
● 1 Ethernet Cord (to connect to network card)
● 2 i1600-U1 Printheads (will need to be installed and calibrated)
● 8 Printhead Cables
● 8 Empty Black Dampers
● 6 Months Limited Warranty (please refer to the warranty info)
● Riin Rip Software
● PrintExp Interface Software

REQUIREMENTS:

● 220v 15amps single dedicated circuit outlet for printer.
● Climate control set to 72-75 degrees and 40-60% humidity.
● Vent to the outside with exhaust fan or using a fume extractor.

WHAT'S NOT INCLUDED:

● Kingdom DTF UV DTF Inks and Varnish
● Kingdom DTF UV DTF Transfer Films
● Computer or Laptop with Windows 10, or 11 with available USB port and card network port.
● Humidifier Monitor (to keep the humidity above 40% in the print room) - is recommended.
